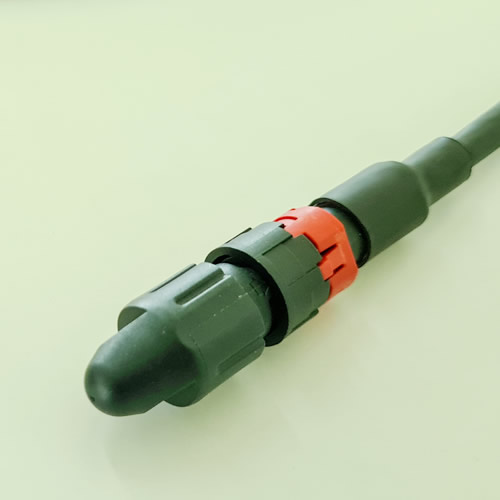

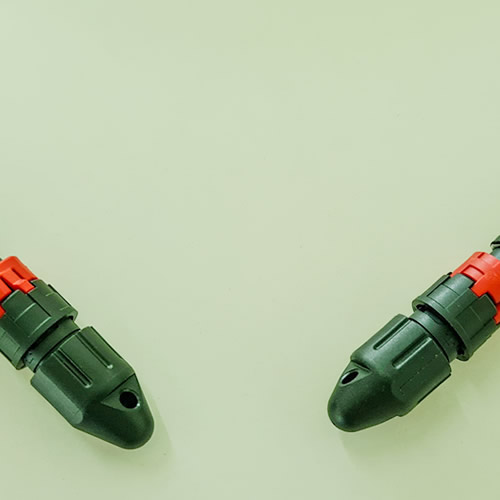

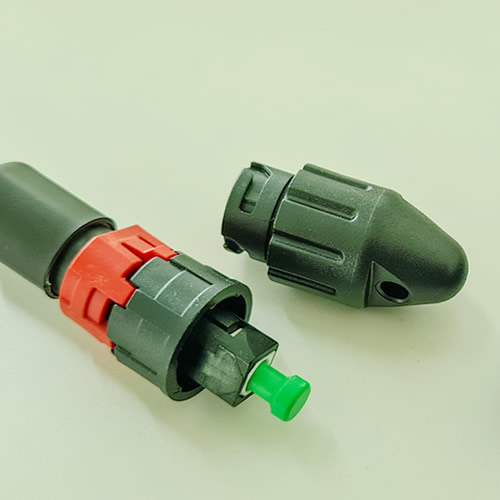

The PX XTREME factory terminated aerial drop cable solution utilizes the esteemed SENKO IP9 range of harsh environment connectivity.
The PX XTREME solution is perfectly suited to developed FTTH markets where discerning ICT organizations demand the very highest quality FTTH install, with the added assurance of protection against inclement weather conditions.
A fully bespoke range of lengths and connectivity are available.
| No. | Item | Specifications | ||
|---|---|---|---|---|
|
1 |
Cladding Diameter (μm) |
125±0.7 |
||
|
2 |
Cladding non-circularity (%) |
≤0.7 |
||
|
3 |
Core-cladding concentricity error (μm) |
≤0.5 |
||
|
4 |
Mode field Diameter @1310&1550nm (μm) |
(8.8～9.8)±0.4 |
||
|
5 |
Cladding -coating concentricity error (μm) |
≤12.0 |
||
|
6 |
Coating Diameter(μm) |
245±0.5 |
||
|
7 |
Fibre Cutoff Wavelength (nm) |
λccf ≤1260 |
||
|
8 |
Attenuation(max.) (dB/km) |
1310nm |
≤0.35 |
|
|
1550nm |
≤0.21 |
|||
|
9 |
Bend Loss (dB) |
Bend Radius |
10 |
15 |
|
Bend Turns |
1 |
10 |
||
|
1550nm |
≤0.75 |
≤0.25 |
||
|
1625nm |
≤1.5 |
≤1.0 |
||
|
10 |
Availability |
G657A1 Corning Glass Fibre is available |
||
