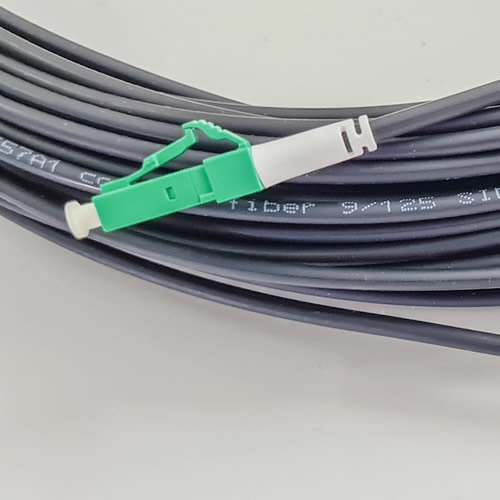

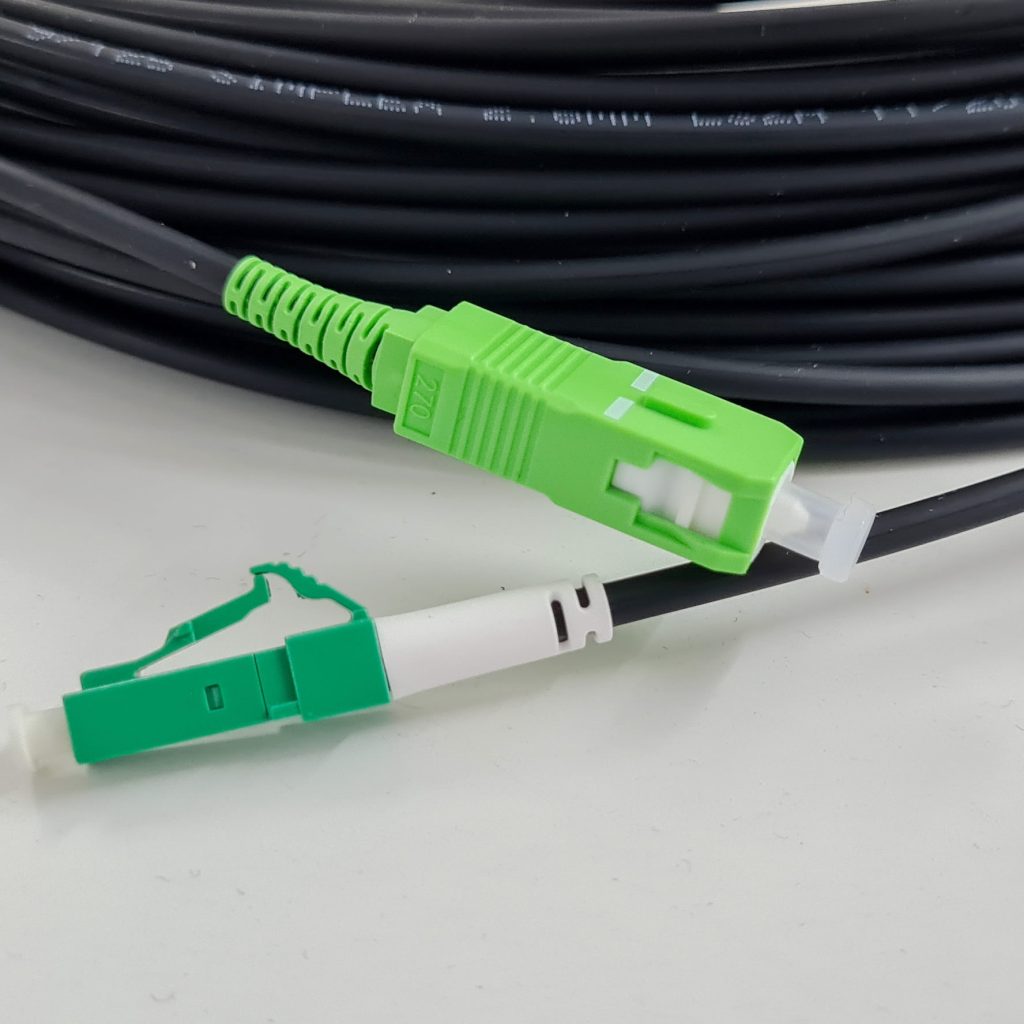

The PX LITE factory terminated aerial drop cable solution utilizes an outdoor UV rated 2.8mm lightweight cable design.
This streamlined and effective ‘’Plug & Play’’ solution is perfectly suited to developing markets, where affordability is the primary factor across large scale deployment of FTTH.
With a wide range of connectivity available, factory terminated drops, in any desired length are custom made to order.
| No. | Item | Specifications | ||
|---|---|---|---|---|
|
1 |
Cladding Diameter (μm) |
125±0.7 |
||
|
2 |
Cladding non-circularity (%) |
≤0.7 |
||
|
3 |
Core-cladding concentricity error (μm) |
≤0.5 |
||
|
4 |
Mode field Diameter @1310&1550nm (μm) |
(8.8～9.8)±0.4 |
||
|
5 |
Cladding -coating concentricity error (μm) |
≤12.0 |
||
|
6 |
Coating Diameter(μm) |
245±0.5 |
||
|
7 |
Fibre Cutoff Wavelength (nm) |
λccf ≤1260 |
||
|
8 |
Attenuation(max.) (dB/km) |
1310nm |
≤0.35 |
|
|
1550nm |
≤0.21 |
|||
|
9 |
Bend Loss (dB) |
Bend Radius |
10 |
15 |
|
Bend Turns |
1 |
10 |
||
|
1550nm |
≤0.75 |
≤0.25 |
||
|
1625nm |
≤1.5 |
≤1.0 |
||
|
10 |
Availability |
G657A1 Corning Glass Fibre is available |
||

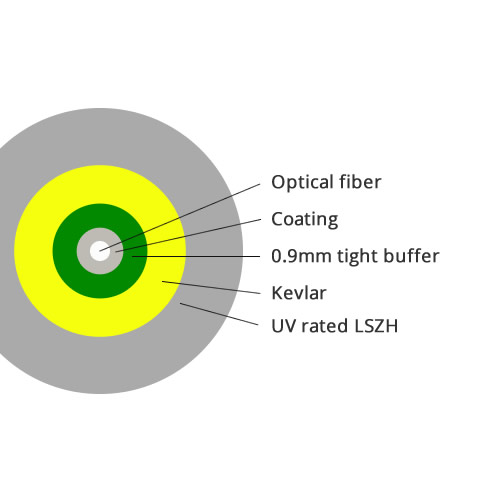

| Item | Specifications | |
|---|---|---|
|
Fibre Type |
SM G657A1 |
|
|
Fibre count |
1 |
|
|
Tight-buffered Fibre |
Dimension |
850+/- 50 um |
| Material | LSZH | |
|
Colour |
White |
|
|
Bend Loss (dB) |
Diameter |
2.9+/- 0.1mm |
|
Material |
UV Rated LSZH |
|
|
Colour |
Black |
|
| Thickness | 0.65+/-0.05mm | |
|
Hardness |
58D |
|
| Strength Member | Kevlar ( 800D*4+china yarn*4) | |
|
Printing content |
OPTICAL FIBER CABLE G657A1 corning fibre 9/125 SIMPLEX 2.8MM LSZH |
|
| Item | Unit | Specifications |
|---|---|---|
|
Tension(Long Term） |
N |
100 |
|
Tension(Short Term） |
N |
200 |
|
Crush (Long Term) |
N/10cm |
200 |
|
Crush(Short Term) |
N/10cm |
1000 |
|
Min. Bend Radius (Dynamic) |
mm |
60 |
|
Min. Bend Radius (Static) |
mm |
30 |
|
Installation temperature |
℃ |
-20～+60 |
|
Operation temperature |
℃ |
-20～+60 |
|
Storage temperature |
℃ |
-20～+60 |
